Technical parameters

UNIT

parameters values

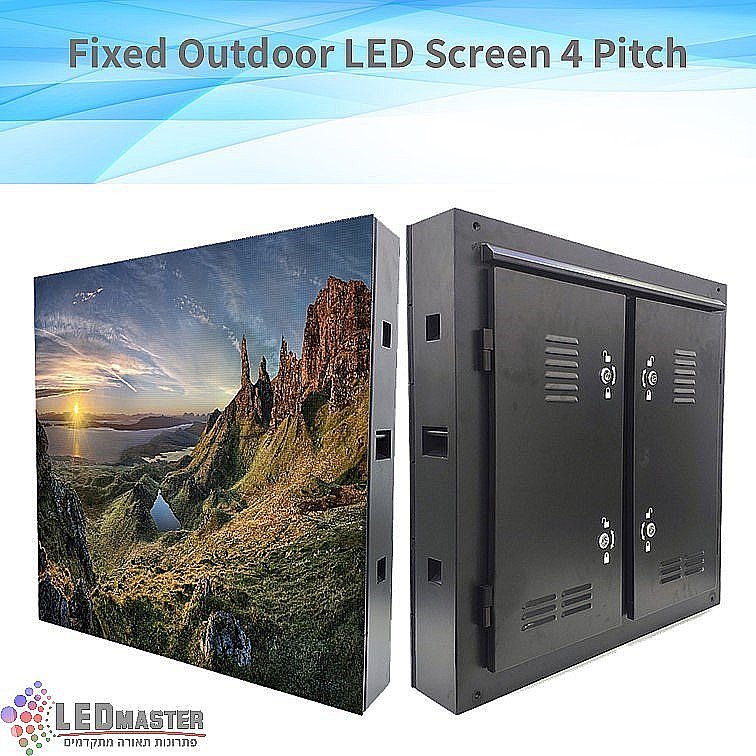

Pixel pitch

MM

4

Panel size

MM

L320*H160*T17

Physical density

/M2

62500

Pixel configuration

R/G/B

1,1,1

Driving method

1/10 Constant current 1/10scan

LED Encapsulation

SMD

1921

Display resolution

DOTS

80*40=3200

Module weight

KG

0.2

Module port

HUB-HD75

Module working voltage

VDC

5

Module consumption

W

28

Viewing angle

Deg.

140

Option distance

M

4-30

Driving device

IC:2038S/2153

Every square metre module

PCS

19.53

Maximum power

W/ M2

550

Frame Frequency

HZ/S

≥60

Refresh frequency

HZ/S

≥1920/3840HZ

Equilibrium brightness

CD/ M2

≥5500-6500mcd

Working environment temperature

0C

-10~60

Working environment humidity

RH

10%～70%

Display working voltage

VAC

AC47~63HZ，220V±15%/110V±15%

Colour temperature

7000K-10000K

Gray scale/color

≥16.7M color

nput signal

RF\ S-Video\ RGB etc

Control system

NovaStar  Linsn  Coloright

Mean free error time

HOURS

＞5000

Life

HOURS

100000

Lamp failure frequency

＜0.0001

Antijam

IEC801

Safety

GB4793

Resist the electricity

1500V last 1min No breakdown

IP rating

The back IP40，The front IP65

Steel box size

mm

L640*h640/960x960
